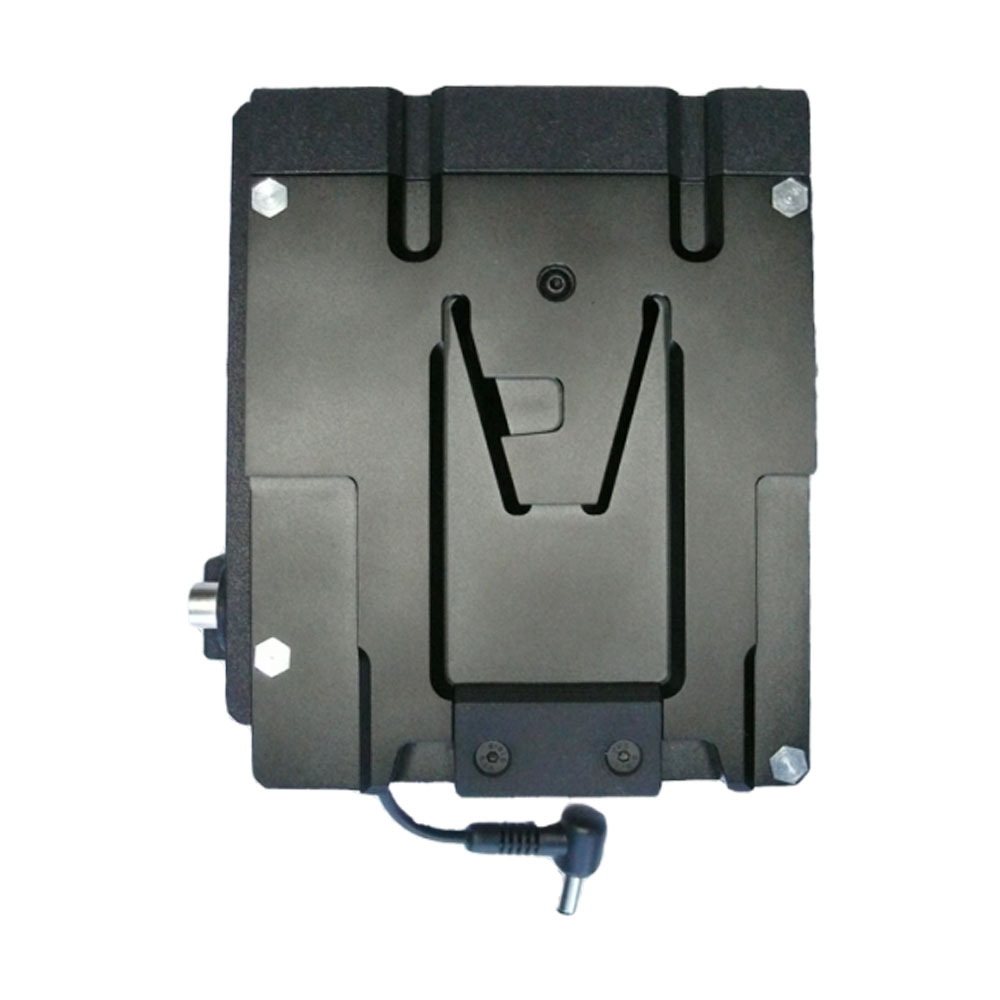

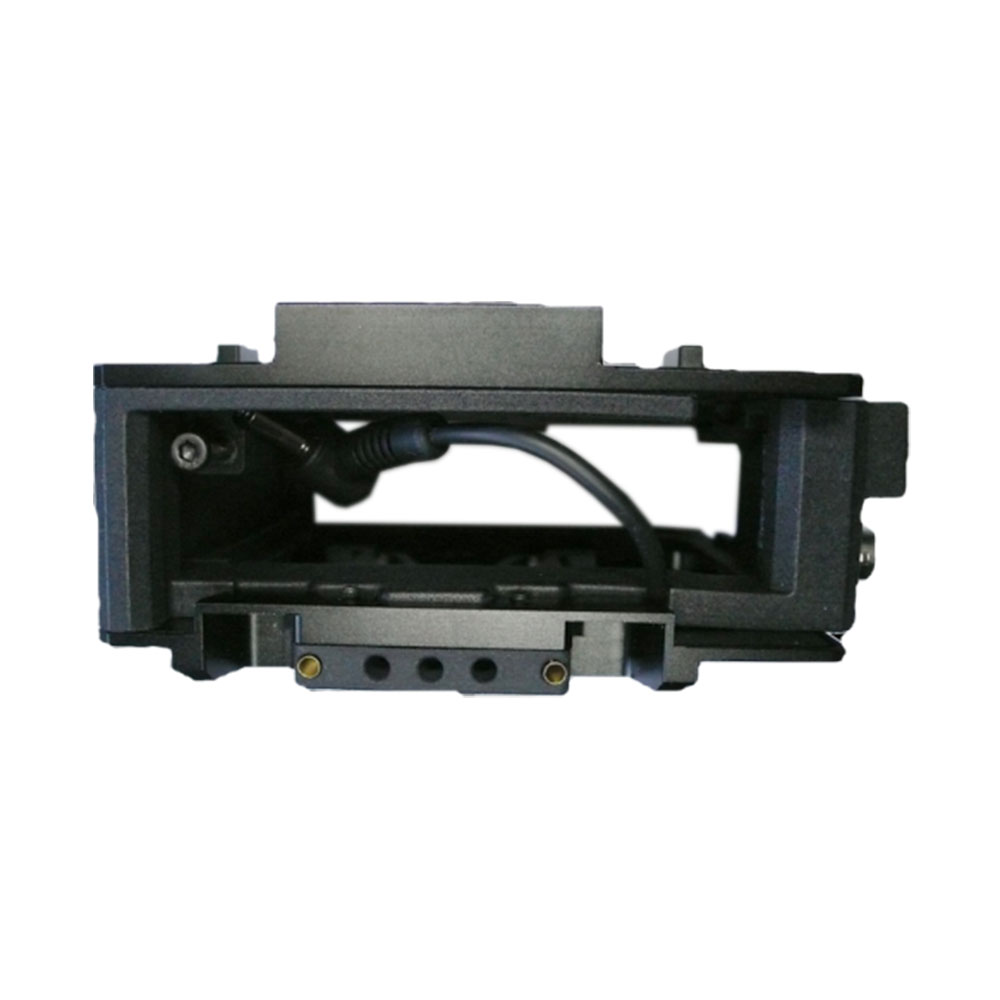

Avington V-Lok Radio Receiver Holder for Thin Zaxcom Receivers
This is a V-Lok radio receiver holder, or caddy, designed to hold Zaxcom radio receivers like the RX200 (or other Zaxcom 25mm x 89mm x 89mm units) on the back of any camera with a V-Lok battery plate.
This fits the Zaxcom RX200 and other thinner Zaxcom units.
The V-Lok sandwiches between battery and camera on any 12V (nominally) V-Lok plate.

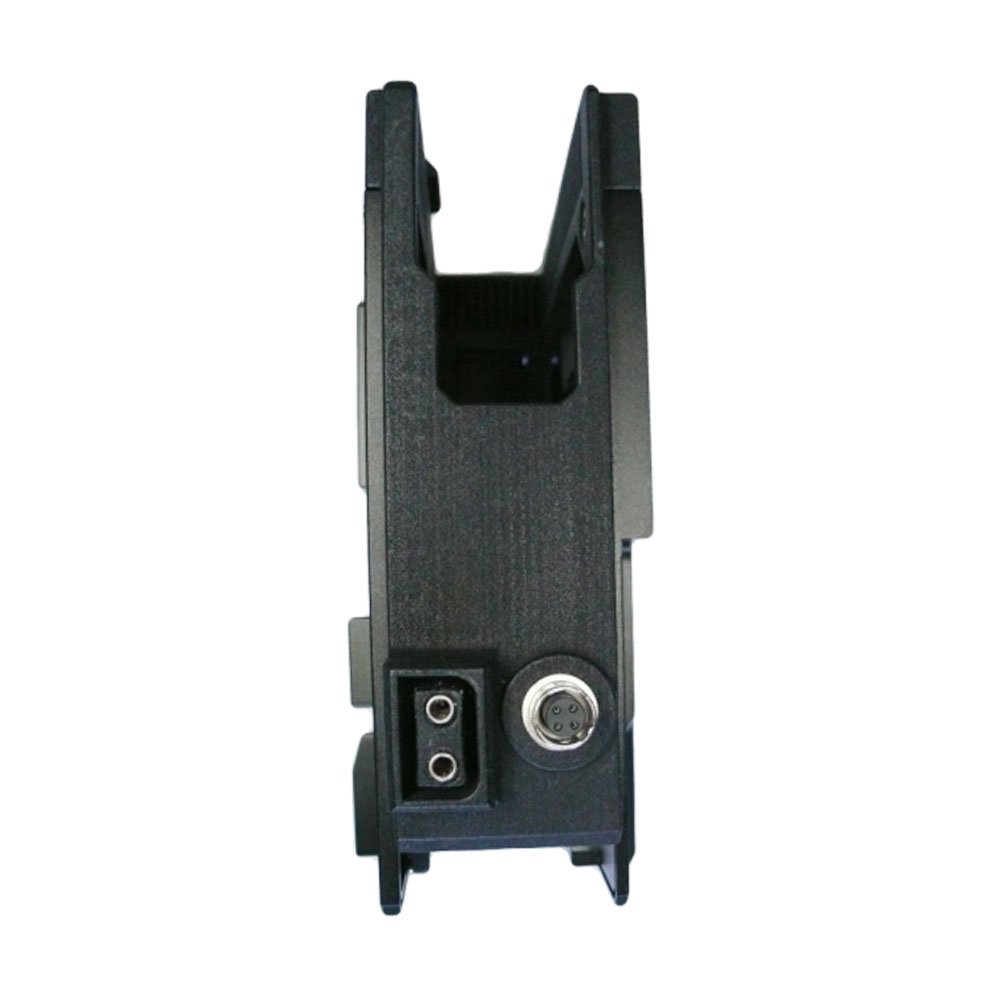

Power is delivered to the receiver via internal locking cable, this switches on and off automatically as the camera does to avoid needlessly draining batteries. There are additional power outputs on the right hand side away from the camera operator's head providing D-Tap and Hirose power connectors, the Hirose connector is automatically switched along with the receiver.
The whole unit is a rugged design milled from solid aluminium and bespoke plastic components.
Hawk Woods 'Real Power' 24V (or 26V) batteries look like they might fit on a normal V-Lok but I assure you they won't.
Note on Use
The Caddy has and auto on feature, and so also an auto off feature. If you put your RX into the Caddy and attach a battery the auto off function will be activated because the camera is not on. If you then attach a camera, or any other load, to the other side of the V-Lok and turn that on, the RX will come on.
