Avington Caddy Universal V-Lok Radio Receiver Holder
This is a V-Lok radio receiver holder, or caddy, designed to hold any slot in radio receiver on the back of a camera with a V-Lok battery plate.
The slot fits any receiver designed to go into a 'Universal' slot, with audio output on a standard TA5M connector.

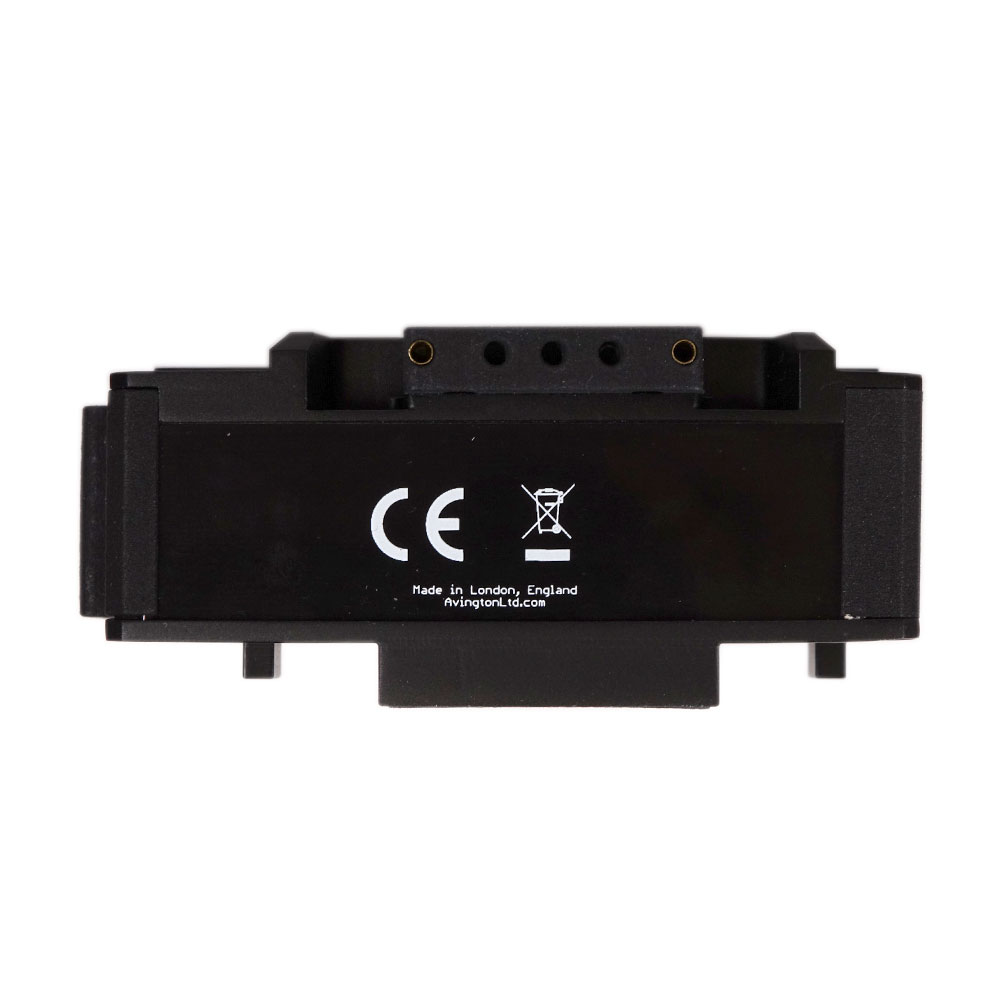

The V-Lok sandwiches between battery and camera on any 12V (nominally) V-Lok plate.
Power is delivered to the receiver internally, this switches on and off automatically as the camera does to avoid needlessly draining batteries. There are additional power outputs on the right hand side away from the camera operator's head providing two D-Tap and two Hirose connectors, the Hirose connectors are automatically switched along with the receiver.
The whole unit is a rugged design milled from solid aluminium.
If you do not already have an output cable then we can supply a suitable cable from 'Location Sound Cables' (Stuart Torrance).
Note that the Sony slot is subtly different and only offers unbalanced outputs, Sony slot receivers normally have an adapter available to give balanced outputs via a unislot. Hawk Woods 'Real Power' 24V (or 26V) batteries look like they might fit on a normal V-Lok but I assure you they won't.
Specifications
- Dimensions: 140mm tall, 95mm wide (plus 7mm for the release button), 37mm long (plus 8mm for battery lugs though these fit into the slots in the battery so they do not add to the length of your rig).
- Weight: 100 grams
Note on Fitting

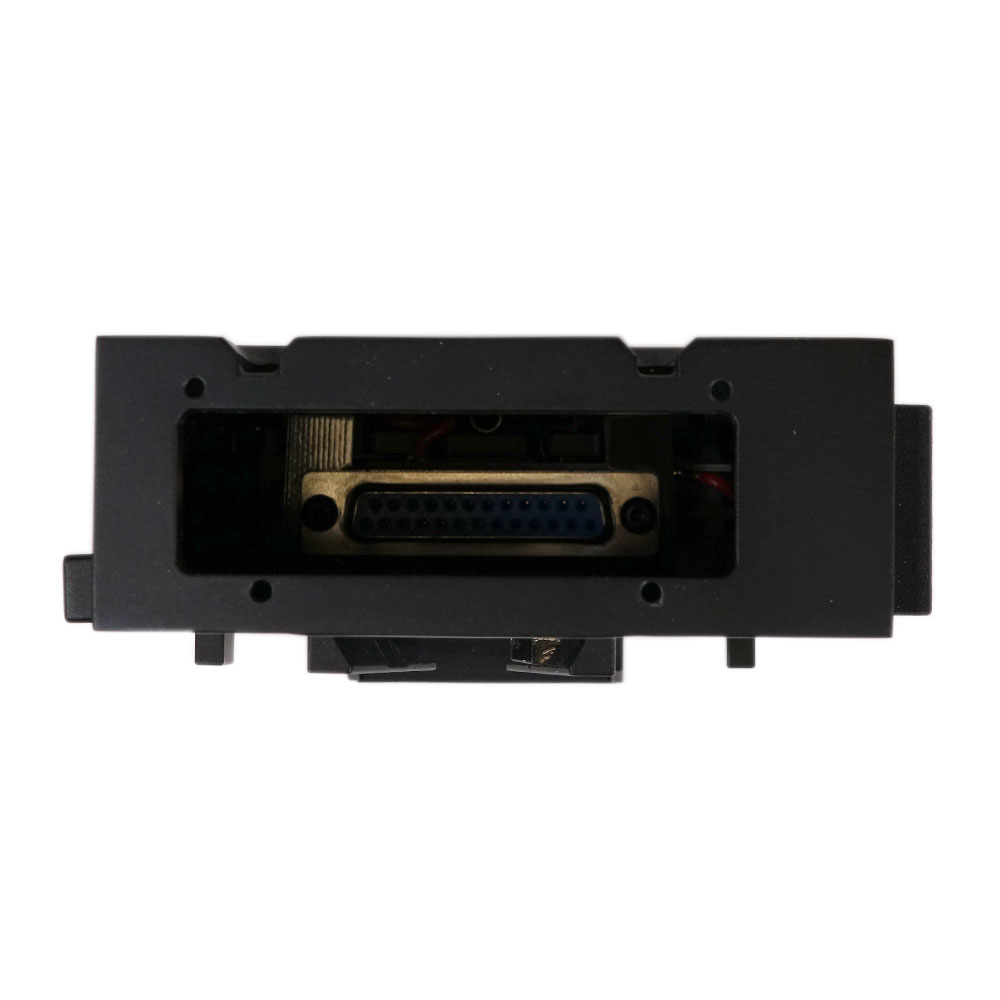

This is a Unislot Caddy, that means that all dimensions will fit any RX designed to fit Unislot. That's a 25 pin connector and specific screw holes and length from top to bottom. Most RX need both the 25 pin base and their respective collar to make them fit a Unislot slot. If your RX fits into a camera Unislot, it will fit this Caddy.
Note on Use
The Caddy has and auto on feature, and so also an auto off feature. If you put your RX into the Caddy and attach a battery the auto off function will be activated because the camera is not on. If you then attach a camera, or any other load, to the other side of the V-Lok and turn that on, the RX will come on.
