Included Accessories:
2x 35983 Case Insulating Pad M2R2x AA Lithium Metal Batteries
1x 35854 .035 Allen Hex Key
1x Instruction Manual

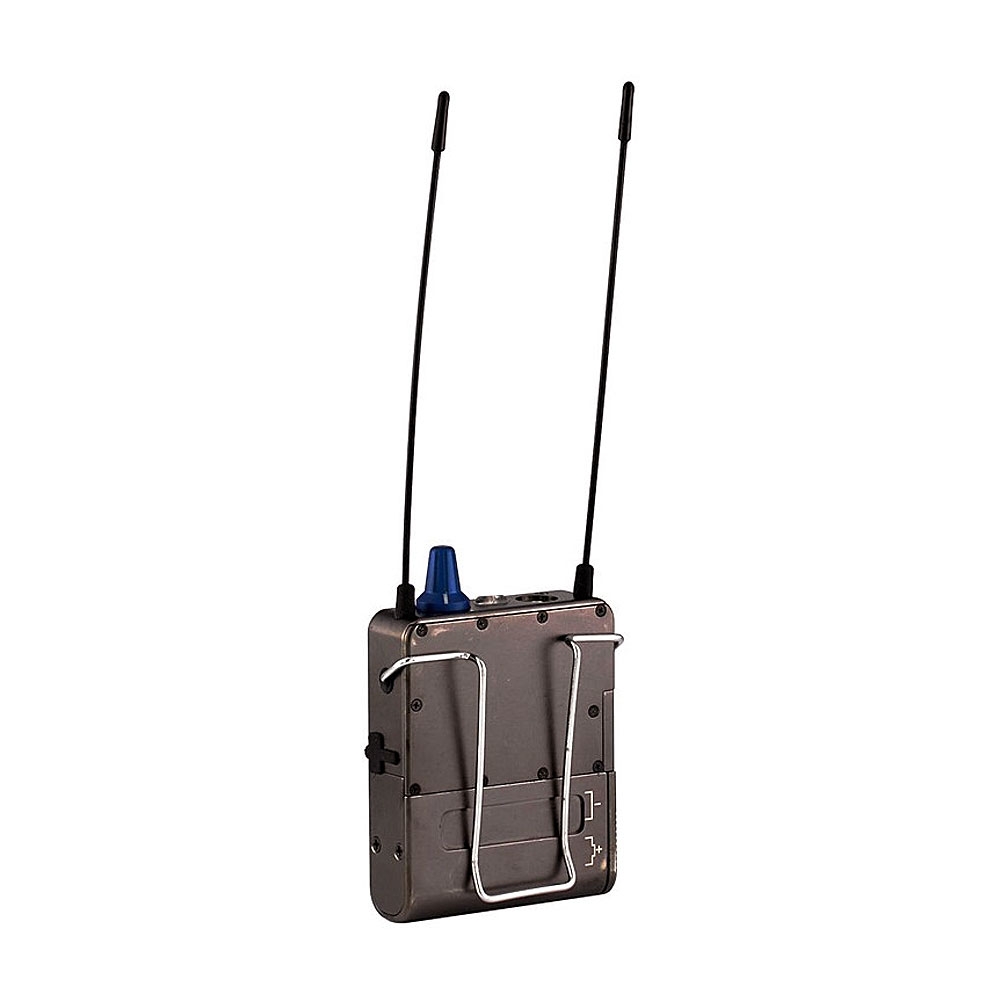

Lectrosonics M2Ra IEM/IFB Receiver
The M2Ra bodypack receiver employs advanced antenna diversity switching during digital packet headers for seamless audio. The digital audio stream guarantees high resolution sound quality with wide dynamic range, low noise floor, and rock-solid stereo image. The receiver can select from stereo, mono from left channel only, or mono from right channel only, giving the unit flexibility in terms of the application. The headphone jack is fed from a high-quality stereo amplifier with 250 mW available to drive even inefficient headphones or earphones (min. 10 ohms) to sufficient levels for stage performance or other noisy environ-ments. The receiver can select from stereo, mono from left or right channels only, or mono from both channels, giving the unit flexibility in terms of application as an IEM, IFB or camera-hop receiver. An intuitive interface and high resolution, color LCD on the unit provide performing artists and audio professionals alike with a comfortable and confident user experience.
The M2Ra employs 2-way IR sync, so data from the receiver can be sent to an M2T transmitter and thus onto Wireless Designer™ Software. This way, frequency planning and coordination can be done quickly and confidently with on-site RF information. Housings and panels are made of machined aluminum with hard-anodized finishes with laser etched marking for durability, yet they are lightweight and sleek in order to be light weight. The M2Ra features a user-friendly interface with a high-resolution, backlit, color LCD and membrane switches. The M2Ra runs for 7 hours on two lithium AA batteries.
Key Features:
- IEM (Wireless Monitor) receiver with digital RF
- IR (infrared) port for fast setup
- High resolution, color LCD
- Stereo or mono operation
- Low latency of 1.6 ms with analog inputs
- P48 Phantom power protection on headphone output
- Analog IFB compatibility mode available
- AES256 Encrypted or non-encrypted operation
- Flexlist for recalling IFB or IEM feeds by name
